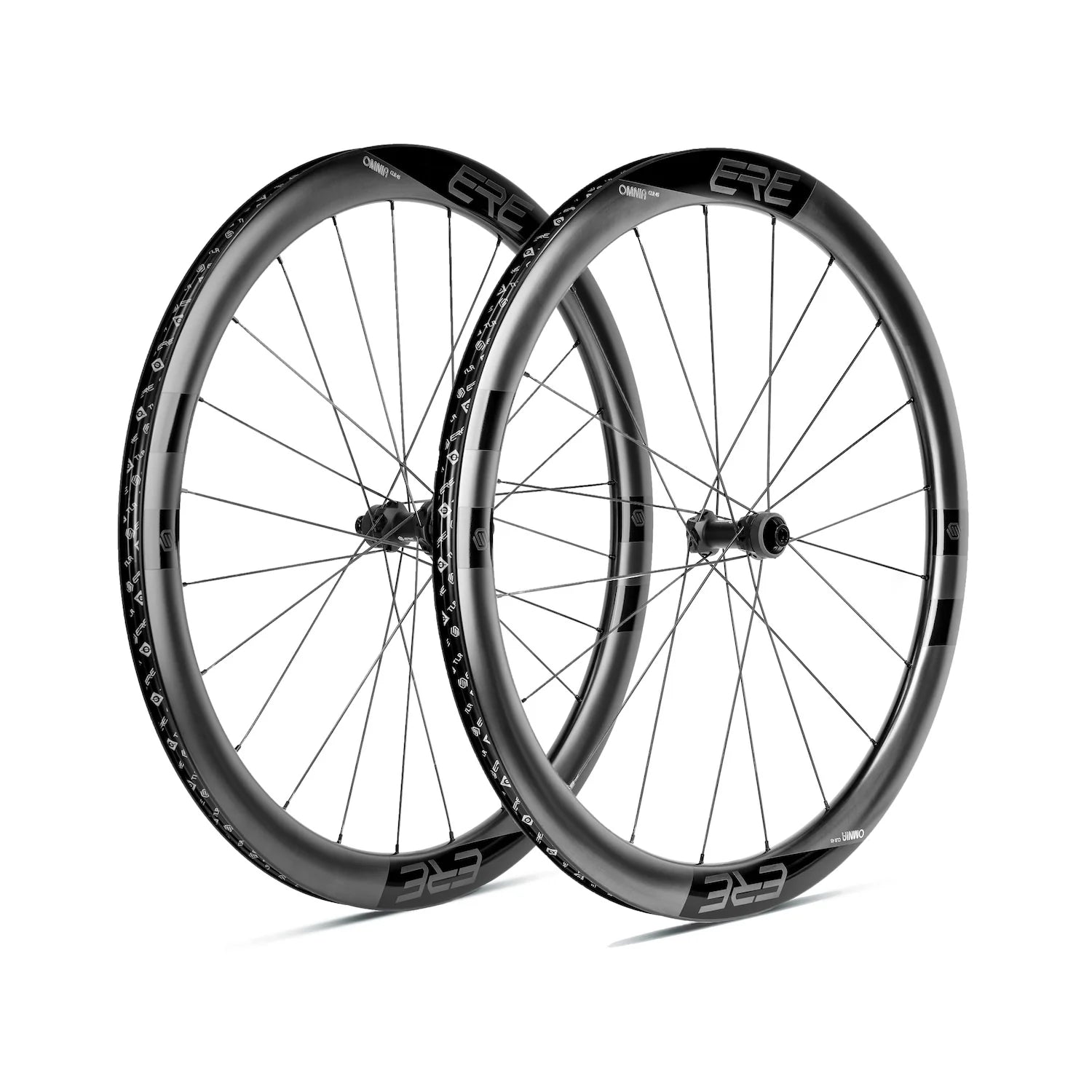

ERE Omnia II CLR45 Disc Brake Carbon Wheelset
ERE Omnia II CLR45 Disc Brake Carbon Wheelset
Regular price
£999.00
Regular price
£999.00
Sale price
£999.00
Unit price
/
per
Availability: In Stock 1-2 Day Dispatch
SKU#: 11121470
Couldn't load pickup availability
New CLR45 Road rim
The Omnia II CLR45 wheelset uses a lightweight rim made of unidirectional carbon with a wider 21mm inner width and a 45mm rim height. That way you can easily fit wider road or gravel tires. Furthermore, the rim has excellent damping and anti-vibration characteristics.
Iona S hubs
Ere Research Iona S hubs are 100% in-house designed and built with precision manufacturing. The hubs are bulletproof and will practically run forever when properly taken care of. The straight-pull hubset has a low profile and a sturdy design. Its angled flange supports the directional torque going through the hub body, so it can take any beating.
Our trusted Iona S hubs are as light as possible, without compromising on strength and reliability. At the same time, we accomplished to maintain the structural integrity with a very thin wall design made from very high-grade aluminium. This results in weights as low as 242 grams for the rear hub and 113 grams for the front hub. The front hub uses a 100 x 12mm axle. For the rear hub we use 12 x 142mm axles. Axles are not included with the wheels.
The rear hub is paired to a 36 teeth star ratchet freehub body and is designed around 4 Ere custom cartridge bearings. Both front and rear hub are equipped with centerlock disc brake mounts.
Torque 2 design
The Ere Torque 2 design absorbs the forces that are transferred to the Iona S hubs from the disc brake forces when braking. When the rear wheel gets torque from the hub body when pressure is applied through the chain and cassette, it directs those forces where the material is strongest. That way we can remove material where we can, and add material where needed.
Sapim Spokes
The front wheel comes with 20 aero-bladed Sapim CX Leader spokes paired to the rim with Sapim Double Square black alloy nipples. For the rear wheel we use 24 aero-bladed Sapim CX Leader spokes for extra stability under acceleration.
Tubeless-ready
The wheels are equipped with Ere ProClose tubeless rim tape for easy set-ups without inner tubes.
| General | ||
|---|---|---|
| Intended use | Performance Aero Road | |
| Total set weight | 1.582 gram (1-3% tolerance) | |
| Front wheel weight | 705 gram | |
| Rear wheel weight | 877 gram | |
| Tyre compatibility | Clincher (wired/foldable)/tubeless | |
| Recommended tyre width | 26C - 32C | |
| Minimum tyre width | 23C | |
| Maximum tyre width | 36C | |
| Maximum rider weight | 130 kg | |
| Brake System | Disc brake only | |
| Race-Ready | YES - UCI approved | |
| Warranty | Lifetime* | |
| Crash replacement | Yes |
* Registering your wheels with ERE after purchase will extend your warranty to lifetime warranty and will grant access to the Crash Replacement Programme
| Rims | Front | Rear |
|---|---|---|
| Rim material | full carbon | full carbon |
| Rim height | 45mm | 45mm |
| Rim size (ETRTO) | 700C / 28" | 700C / 28" |
| External rim width | 28mm | 28mm |
| Internal Rim width | 21mm | 21mm |
| Rim type | Clincher/tubeless | Clincher/tubeless |
| Tubeless (ready) | Yes* | Yes* |
| Tubeless Tape | Ere ProClose 26 | Ere ProClose 26 |
* Tubeless tape is fitted to the rims. Recommended tubeless tape width is 26mm
| Hubs | Front | Rear |
|---|---|---|
| Hubs | IONA S | IONA S |
| Weight | 113 grams | 242 grams |
| Hub material | Alloy | Alloy |
| Spoke pattern | 20 hole straight-pull | 24 hole straight-pull |
| Bearings | 2 x Ere Custom bearing | 4 x Ere Custom bearing |
| Engagement system | 36T Star Ratchet | |
| Compatibility | Shimano/SRAM | |
| Axle System | TA 100 x 12mm | TA 142 x 12mm |
| Brake Interface | Centerlock | Centerlock |
| Finish | Matt black anodised with logo | Matt black anodised with logo |
| Spokes | Front | Rear |
|---|---|---|
| Spoke | Sapim CX Leader Black | Sapim CX Leader Black |
| Spoke count | 20 | 24 |
| Spoke type | Straightpull Aero | Straightpull Aero |
| Spoke length NDS/DS* | 283/281 | 274/276 |
| Nipples | Sapim Double Square Alloy Black | Sapim Double Square Alloy Black |
| Spoke tension | DS 1000-1350Nm / NDS 950-1050Nm | DS 1000-1350Nm / NDS 950-1050Nm |
*DS: Disc Side / NDS: Non-Disc Side
